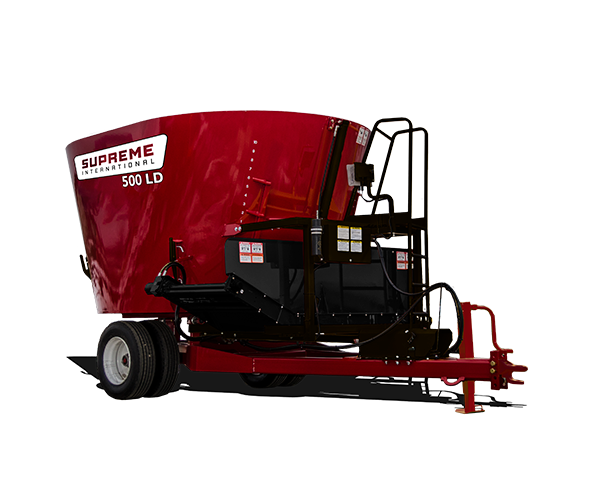

500 PULL-TYPE
The 500 Pull-Type has a maximum payload of 14,000 lbs (6,350 kg), struck capacity of 394 ft³ (11.2 m³) or 459 ft³ (13.0 m³) with tub extension, and requires 100 horse power (75 kW).
Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.
The 500 is also available as a stationary mixer.
Technical Details
Minimum Power Requirements: 100 hp / 75 kW
Unit Capacity: Struck Capacity: 394 ft³ / 11.2 m³
Capacity with Extension: 459 ft³ / 13.0 m³
Tires: 235 x 75 x 17.5 Tires
Empty Weight: 9,000 lbs / 4,082 kg
Max Payload: 14,000 lbs / 6,350 kg
Dimensions: Height: 105" / 267 cm
Height w/ 10" Extension: 115" / 292 cm
Overall Width: 103" / 262 cm
Overall Length : 221" / 561 cm
Drive / rpm PTO: 2-Stage Heavy-Duty Planetary Drive / 540 or 1,000 rpm PTO
Standard Discharge Ground Clearance: SIDE DOOR:
Fixed Chute: 27" / 69 cm
21" Fixed: 36" / 91 cm
36" Folding; 42" / 107 cm
44" Folding: 46" / 117 cm
96" Folding: 68" / 173 cm
FRONT DOOR w/ CONVEYOR:
Flat: 27" / 69 cm
Dogleg: 40" / 102 cm
Ext. Dogleg: 51" / 130 cm
42" Folding: 44" / 112 cm
54" Folding: 49" / 124 cm
Number of Knives : 5 Replaceable Forage Cutting Blades
Conveyor: Left or Right Hand Side Door with Drop Chute
Floor Thickness: 5/8" / 16 mm M/S Floor
Wall Thickness: 1/4” / 6 mm AR200 Walls
Standards Specifications:
- Patented Freestanding Vertical Mixing Auger
- Manual Restrictor Plates
- Heavy-Duty Tubular Steel Frame
- 5/8” / 16 mm AR200 Auger Flighting
- 3 pt Scale System
- 12 Volt Battery
- Ultra Wear Kickerplate
- SS Conveyor Top Pan on Conveyor Models
- Steel Oil Reservoir
- Removable Heavy-Duty Hitch Jack
- Viewing Platform
Horse Power Required: 100
Maximum Payload (lbs): 14000
